Wire Gauge v3 Calculator


 Wiregage3.exe  converts between trace geometry (width and thickness) and equivalent AWG wire gauge. It also calculates trace resistance at a given length and temperature, and voltage drop across the trace for a given current. It is an update to the previous version, written in VB.net and offers better OS compatibility.

Click here to view a wmv demo of the calculator. (Note: This video is an excerpt from a seminar video. It is approx. 4 MB,  2.5 minutes.)

The calculator is included in the download "ucad-universal.zip."

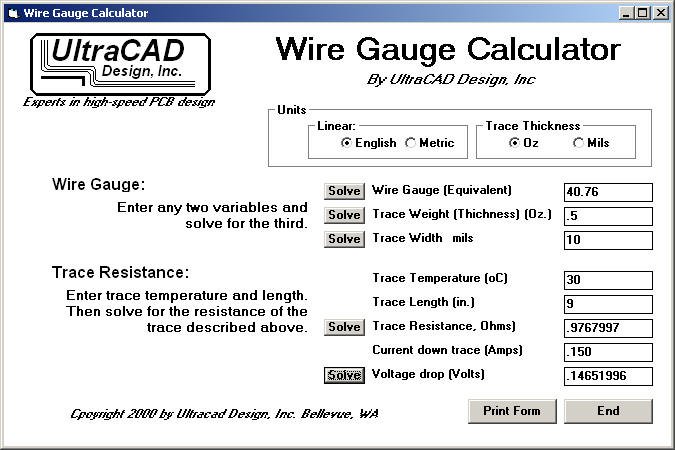

 A screenshot of the calculator follows:
